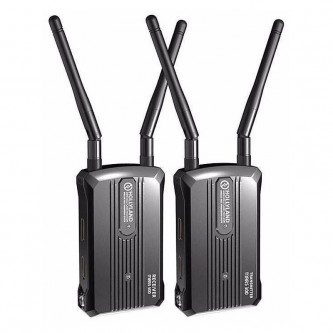

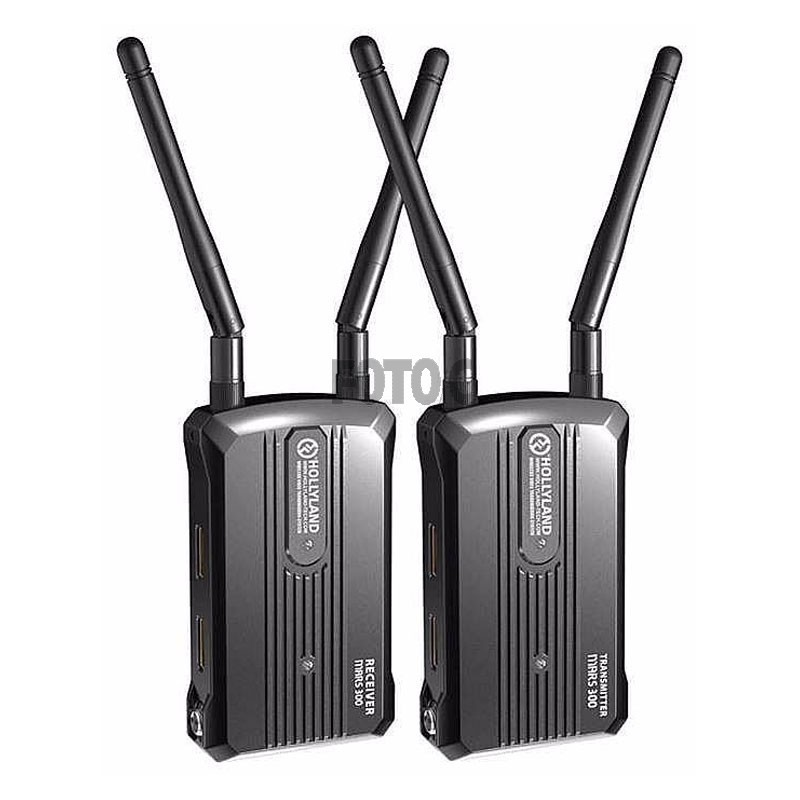

Hollyland Mars 300 Wireless HDMI

Stable Transmission, 300ft is not the limitation

Mars300 is 300ft wireless transmission system with low latency and high-quality video.

Break through tradition – lightweight and compact

For a better experience, Mars 300 is using the die-casting process to get integral moulding. Lightweight and compact design can meet different applications.

Using innovative chipset solution

The power consumption is minimised while maintaining device performance. One full-charge 970 battery can be used continuously for 5 hours.

Motion noise reduction, high definition quality

Applying the noise reduction technology, which will reduce the image quality loss. Clear and high-quality image can satisfy the requirements of director and photographer.

Dual HDMI port design

Both transmitter and receiver are equipped with Dual HDMI ports. On the transmitter, one HDMI-IN port for audio and video signals; one HDMI-loop out for extra monitor. On the receiver, both HDMI ports can output audio and video.

Transmitter

Interface HDMI Input

Loop Out (Type A Female)

2 Antenna Port

DC Input

Micro USB

Pairing Button

Channel Selection Button

Power Supply 6-16V DC

Power Consumption under 6W

Weight 186G

Dimensions 105 x 62 x 22mm

Input Video Format HDMI 480P @60HZ, 576P @50HZ, 720P @50/60HZ

1080i @50/60HZ

1080P @30/50/60 Hz

Frequency Band 5GHz

Transmission Power 17dBM

Transmission Latency 50ms

Receiver

Interface HDMI Output 1, Output 2, (Type A Female)

2 Antenna Port

DC Input

Micro USB

Pairing Button

Channel Selection Button

Power Supply 6-16V DC

Power Consumption under 5W

Weight 186G

Dimensions 105 x 62 x 22mm

Output Video Format HDMI 480P @60HZ, 576P @50HZ, 720P @50/60HZ

1080i @50/60HZ

1080P @30/50/60 Hz

Receiving Sensitivity -80db

In the box

Transmitter

Receiver

1/4"-20 Screw Mount

5 x Antenna

Cold Shoe Mount

DC Adapter
