SKU: BM-VHUBSMTCS6G1212

EAN: 9338716003437

Producent: Blackmagic

Blackmagic Smart Videohub Cleanswitch 12X12 Forstør

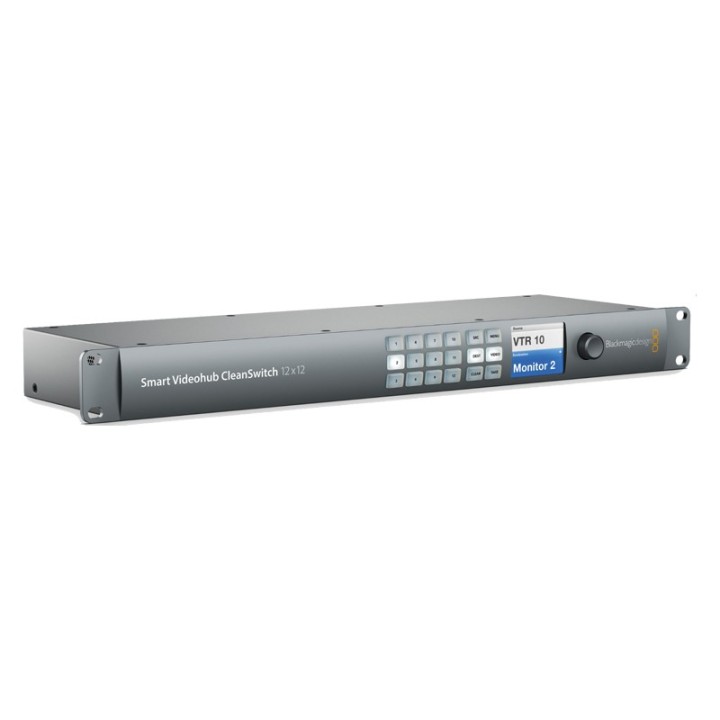

Blackmagic Smart Videohub Cleanswitch 12X12

Ny

Smart Videohub cleanswitch 12x12 med indbygget "frame syncronizers" på alle inputs, som betyder at routeren kan brugs som en videoswitcher uden at billedet "falder ud" når der skiftes mellem kilderne

Flere detaljer

2-7 dage (Bestillingsvare)

kr 12.625,00 inkl. moms

Yderligere information

SDI Video Inputs

12 x 10-bit SD-SDI, HD-SDI and 6G-SDI.

SDI Video Outputs

12 x 10-bit SD-SDI, HD-SDI and 6G-SDI.

SDI Rates

270Mb, 1.5G, 3G, 6G.

Video Input Re-Sync

On all 12 inputs for clean switch.

SDI Reclocking

On all SDI outputs.

Reference Input

Tri-Sync or Black Burst.

Control Panel Connection

Ethernet.

Serial Control Connection

RJ-6 RS-422.

Multi Rate Support

Auto detection of SD, HD or 6G-SDI. Simultaneous routing of 4K, HD and SD video.

Updates

USB

Front Panel Router Control

12 buttons for local control of Videohub. 6 buttons and scroll wheel for control of LCD display or RJ45 Ethernet.

Router Configuration

Via front panel LCD or RJ45 Ethernet.

RS-422 Router Control

1 x input for controlling router crosspoint switching.
