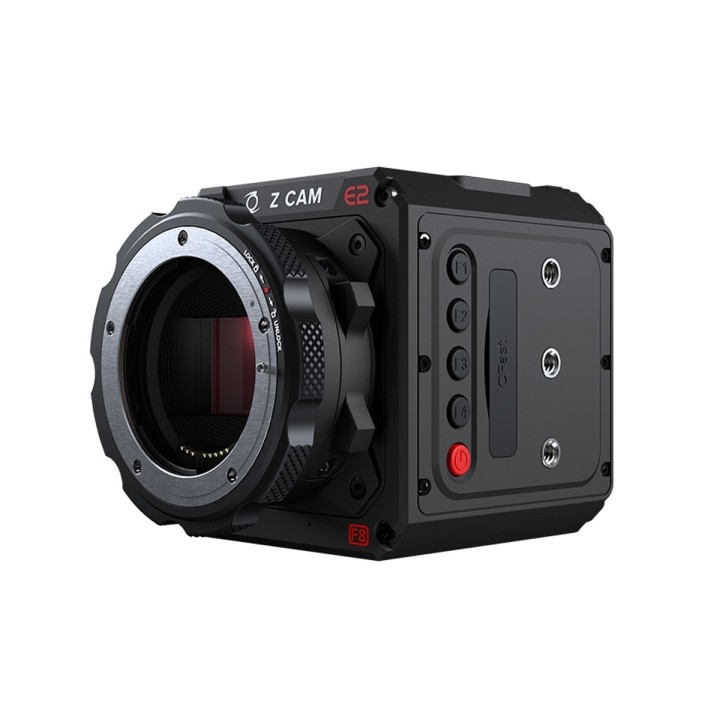

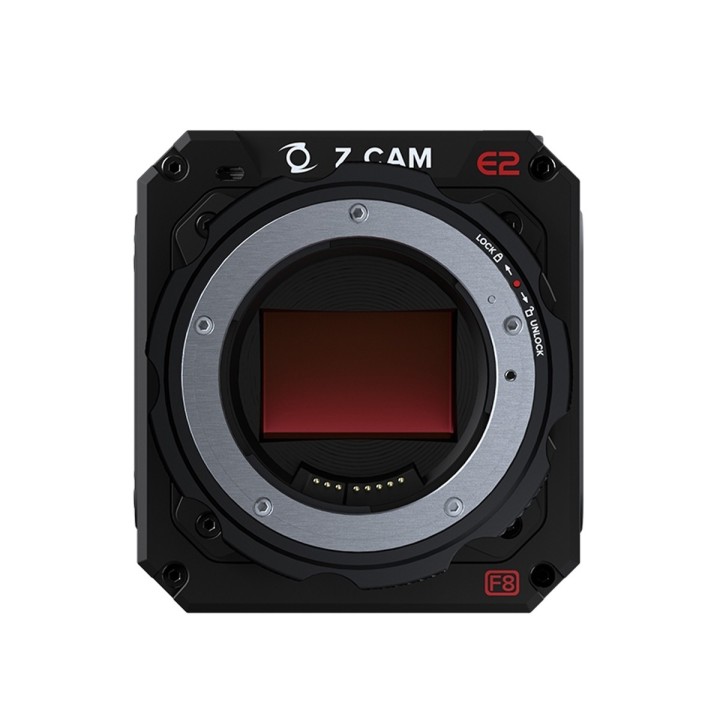

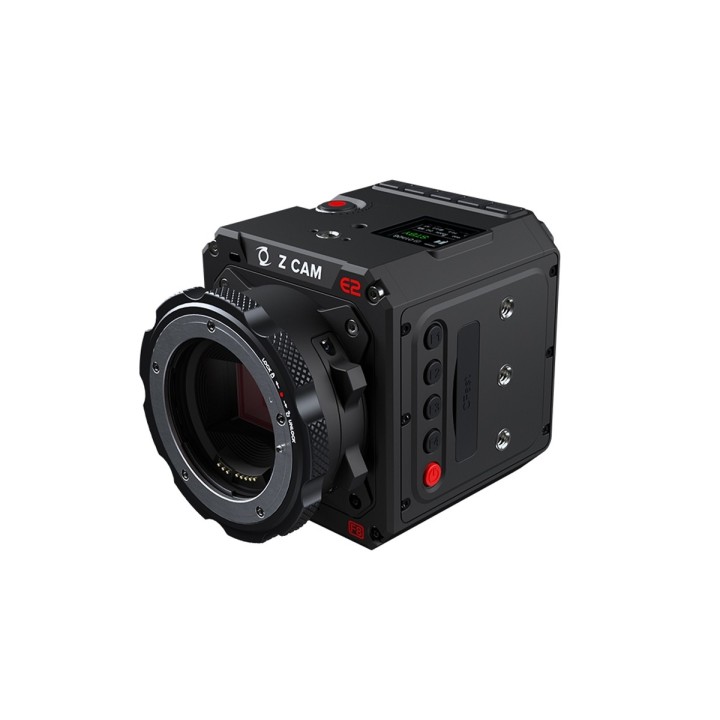

Z-CAM E2-F8 Cinema Camera

Overblik:

Full Frame CMOS sensor

Sensor-størrelse: 35.97 x 23.98 mm

Effektive pixels: 61 M

Dynamisk rækkevidde: 14 blændetrin

Objektivfatning: EF

Tekniske specifikationer:

Opløsning og max frame rate:

8192x3456 @30fps (8K 2.4:1)
7680x4320 @30fps (8K UHD)
6144x3240 @30fps max (6K DCI)*
5760x3240 @30fps max (6K UHD)*
3840x2160 @60fps max (4K UHD)*

Max Bit Rate: 500 Mbps max for H.265 & H.264 / 1.2 Gbps for ZRAW

Color Bit Depth: 12-Bit ProRes RAW / 12-bit ZRAW / 10-bit 4:2:0 (H.265) / 8-bit 4:2:0 (H.264)

Video Encoder: ZRAW* / H.265 main 10 profile / H.264 high profile** up to 4K @30fps

Audio format: 24-bit 48 kHz

Audio encoder: AAC / PCM (for MOV only)

Fil-format: MOV / MP4

Record mode: Video / Time Lapse Video

Indstillinger:

ISO:Auto, Manual (400 ~ 125000), Dual Native ISO: 400 / 1250

Shutter Speed: Auto, Manual (up to 1/8000”) or

Shutter Angle: Auto, Manual (1° ~ 360°)

White Balance: Auto, Preset, Manual (2300K ~ 7500K)

Focus mode: MF / AF / CAF

Image: Brightness / Contrast / Saturation / Sharpness

Image profile: Rec.709 / Z-Log2 / FLAT / HLG

Audio: Audio In / Out Level

Time code: Current Time / Manual Input

Lagring:

HDMI: HDMI 2.0 Type A (video output up to C4K @ 60fps, 10-bit 4:2:2)

USB: USB 3.0 Type C for camera control & data transfer only

COM: 2 x Serial Port

Remote Control: 2.5 mm jack socket (Sony LANC compatible)

Audio-in: 3.5 mm stereo jack socket for active microphone only, or 5-pin LEMO port for dual channel XLR microphone (requires additional XLR audio connector)

Audio-out: 3.5 mm stereo jack socket

Wi-Fi: 5G, 802.11n with external antenna port

Ethernet: Gigabit Ethernet port for control, setting & live streaming

Strømforsyning:

Batteri: Sony NP-F series compatible, 6.8V ~ 8.4V (Battery not included)

Power input: DC 6.8V ~ 16.8V (2-pin LEMO socket), with LEMO connector

Power output: DC 12V (2-pin LEMO socket)

Dimensioner:

Materiale: Aluminum Alloy

Vægt: 1090g (EF mount) / 1160g (PL mount)

B x H x D:

91.20mm x 99.25mm x 122.25mm (EF mount)
91.20mm x 99.25mm x 133.35mm (PL mount)
