Panasonic Lumix S5 M2X kamerahus

Highlights:

• Newly developed 24mp full-frame sensor
• New imaging engine supports Hybrid Phase Detection Auto focus
• 5.8K Apple ProRes to SSD and ProRes Raw to an Atomos recorder
• Internal 4:2:0 10-bit 6K at up to 30fps and 4:2:2 4K at up to 60fps
• Highly improved image stabilization
• Splash and dust resistant construction

Detailed description:

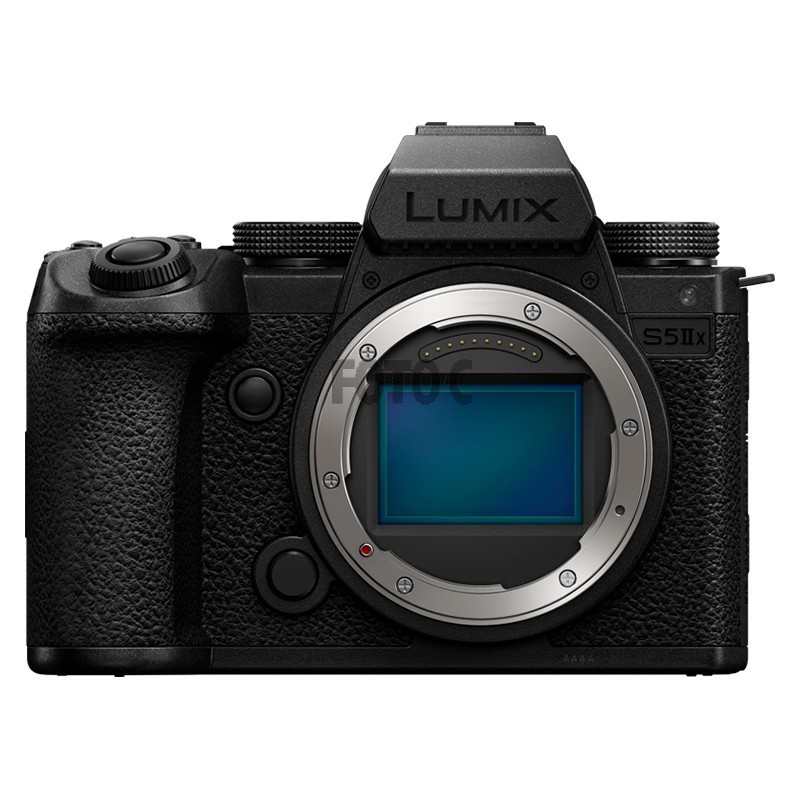

Built around a newly developed 24-megapixel 35mm full-frame CMOS sensor and imaging engine the Lumix S5 MK IIX supports Hybrid Phase Detection Auto-Focus, a first for LUMIX cameras, while the new engine provides superb image quality and high bit-rate video performance on a par with the LUMIX S1H.

Setting new standards in LUMIX AF performance

With a new imaging engine developed within the L2 Technology partnership formed by LEICA and LUMIX, and a new 24-megapixel sensor, the LUMIX S5 IIX is the first LUMIX cameras to offer Hybrid Phase Detection Auto-Focus (PDAF).

The camera uses a new Phase Hybrid AF system combining PDAF with Contrast Detect AF.

Fast and dependable and providing 779-area metering, the new system is able to detect target subjects in difficult conditions. Such as low light and backlighting and, once locked on, will remain tracking them even with other moving objects in the frame.

A wealth of video functions and recording options

The new engine gives the LUMIX S5 IIX video recording capabilities including internal 4:2:0 10-bit 6K (3:2) and 5.9K (16:9) at 30fps and 4:2:2 C4K and 4K at up to 60fps, while a new low-profile heat management system allows for unlimited recording times without increasing the size of the camera body.

The camera also support HFR (High Frame Rate) recording at up to 120fps and Slow & Quick capture at up to 180fps.

The LUMIX S5 IIX is capable of 5.8K Apple ProRes recording to SSD via HDMI or USB, and ALL-Intra Recording.

Additionally, the S5 IIX can support Apple Pro Res RAW video output to Atomos.

It also supports wired and wireless IP streaming and USB tethering.

A range of picture profiles including 14+ stop V-Log/V-Gamut are available on both models, as well as a new REAL TIME LUT function. Enabling color-grading LUTs to be uploaded to an SD card and directly applied in-camera rather than in post-production.

In response to requests from professional users, functions such as Waveform Monitor, Vector Scope and Zebra Pattern have been added, as well as features such as System Frequency (24.00Hz) and Synchro Scan.

Clear and realistic 48kHz/24-bit audio can be recorded by the built-in or an external microphone, while high-resolution 96kHz/24-bit recording is possible with external and XLR microphones.

Professional photo and video performance

Thanks to host of new and improved features, the LUMIX S5 IIX is able to deliver truly astounding photo and video performance, including high-speed burst shooting at up to 9fps with mechanical shutter and 30fps with electronic shutter (capable of capturing up to 300 images).

A 96-megapixel High Resolution Mode (JPEG/RAW) and Dual Native ISO sensitivity, which minimizes noise and allows a maximum ISO of 51200 (204800 when Extended).

The LUMIX S5 IIX also boasts an upgraded image stabilization system to greatly enhance handheld shooting in a wide range of conditions and situations.

The new Active I.S. provides highly stable video recording by optimizing horizontal, vertical and rotational correction. Compensating as much as 200% compared to conventional stabilization, Active I.S. is especially effective in traditionally challenging conditions for handheld shooting, such as using telephoto lenses or filming while walking.

Superior handling and options for ‘one-person crew’ operation

The LUMIX S5 IIX offers a highly refined shooting experience, allowing creators to achieve excellent results with minimal workflow thanks to features such as AWB Lock. MF Assist (available for both video and photo shooting) and a new Live Crop function, which records video footage using the entire sensor surface enabling the user to crop 4K and FHD images out afterwards.

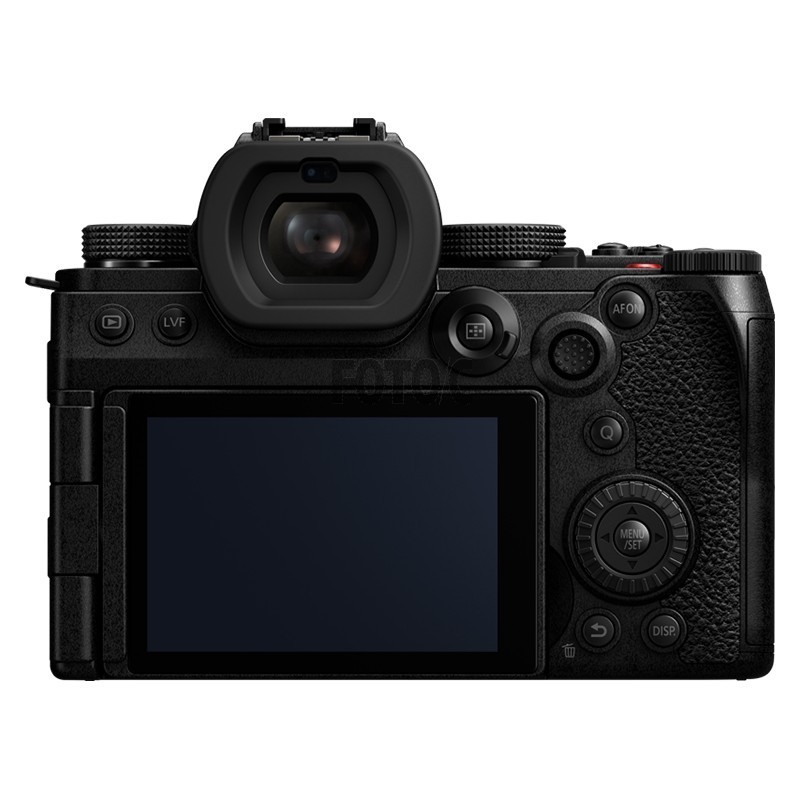

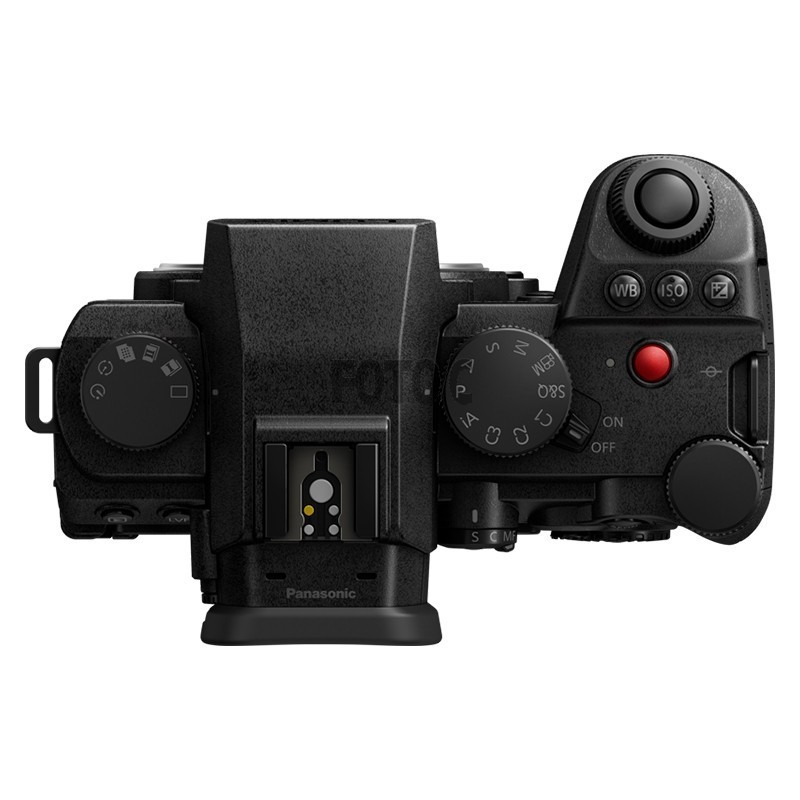

Usability is further enhanced with the new easy-to-operate 8-way joystick, expanded drive dial, 3.0-inch free-angle touch-control monitor and large, 3,680K-dot OLED Live View Finder.

Class-leading reliability and connectivity

The cameras are built to robust standards for in-field use, with magnesium alloy die-cast front and rear frames and a splash- and dust-resistant construction.

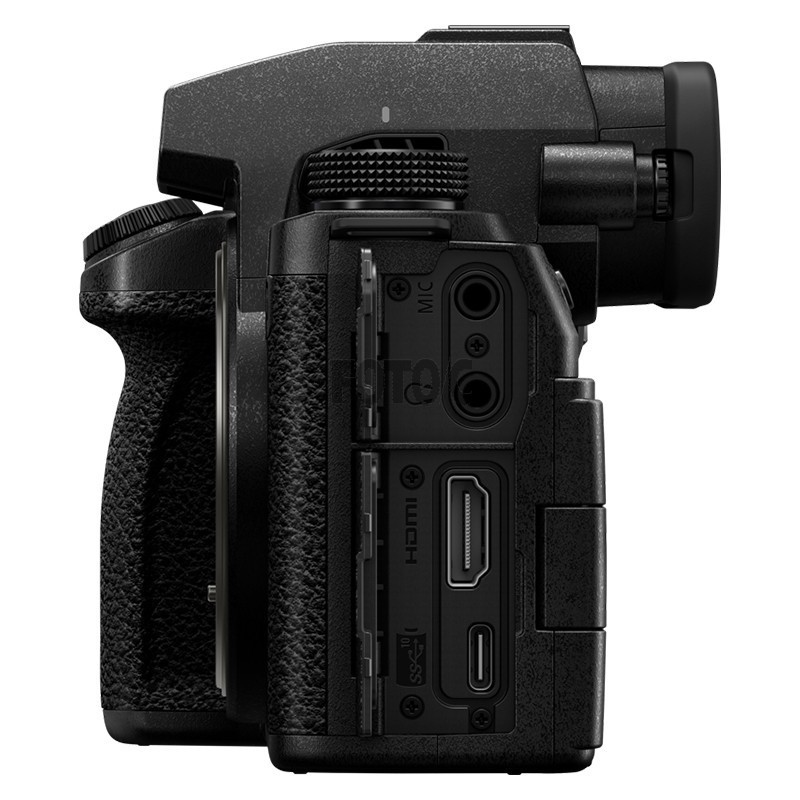

Connectivity has been improved over the LUMIX S5, with the LUMIX S5 IIX featuring a full-size HDMI Type A terminal and high-speed USB 3.2 Gen 2, plus a cable lock holder to prevent unwanted unplugging. Wireless connectivity has been improved too, with Wi-Fi 5GHz2 joining 2.4GHz to provide fast, stable communication with smartphones and tablets.

Dual card slots (both UHS-II) support Relay Recording, Backup Recording and Allocation Recording and the 2200mAh high-capacity battery can be recharged via AC or USB.

Specifikationer:

Objektiv mount: L (Leica)

Kompatible mounts: L (Leica/Panasonic/Sigma)

Megapixel Opløsning: 24.28 MP

Antal effektive pixels: 24.2 MP

Sensor størrelse: Fullframe

Billedstabilisering: Ja

Autofokus: Ja

Fokuspunkter: 779

ISO Indstilling: 100-51.200 L: 50 - H: 102.400

Bredde: 10.2 cm

Dybde: 13.4 cm

Højde: 9 cm

Vægt: 740 g

Indbygget flash: Nej

Flashsko: Ja

LCD strørrelse: 3 "

Touchskærm: Ja

Batteri: DMW-BLK22

Lagringsmedie: 2xSD,2xSDHC,2xSDXC

Billedfil format: JPEG,RAW

Videoopløsning: 6K 10-bit 4:2:0 30fps, 4K 10-bit 4:2:2 60fps,

Videoformat: MOV: H.264/MPEG-4 AVC H.265/HEVC MP4: H.264/MPEG-4 AVC H.265/HEVC Apple ProRes

HDMI udgang: Ja

Mikrofon indgang: Ja

Hovedtelefon indgang: Ja

USB indgang: USB-C (3.1)
