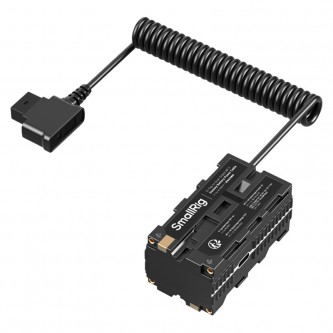

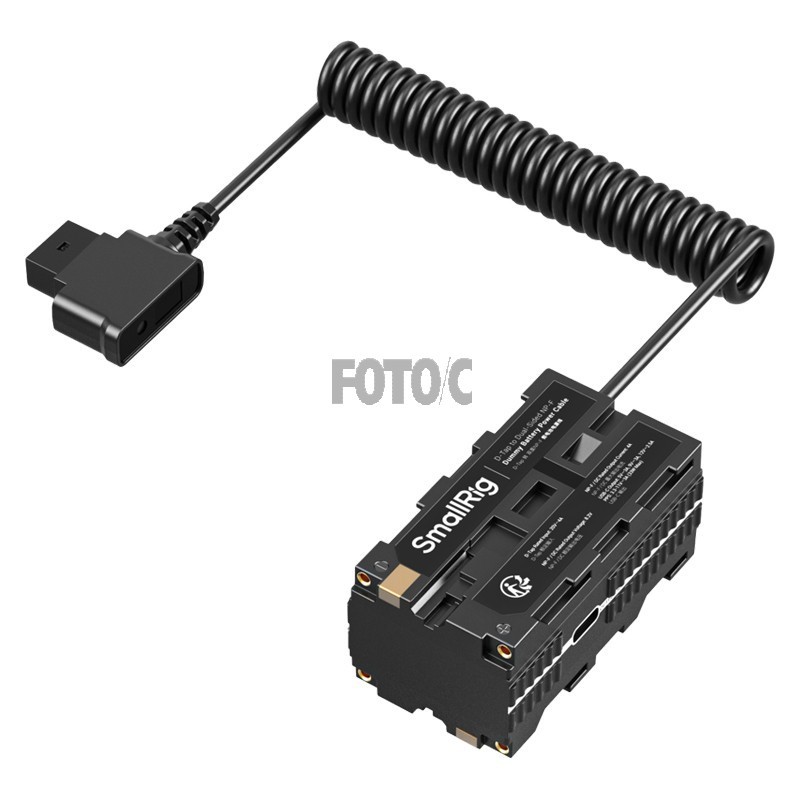

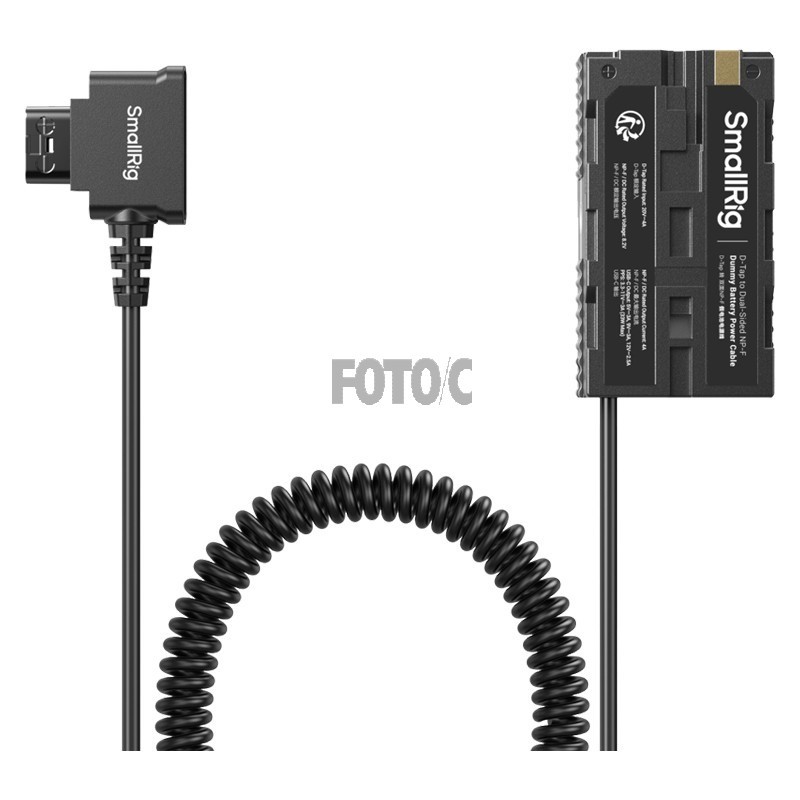

SmallRig 4884 D-Tap to Dual-Sided NP-F Dummy Battery Power Cable

SmallRig 4884 D-Tap to Dual-Sided NP-F Dummy Battery Power Cable

The NP-F outputs power monitors and video transmitters, the DC output powers cameras via dummy batteries, and the USB-C output powers devices like follow focus motors and mobile phones.

Designed for portability and efficient cable management, this power cable is equipped with two displays and one indicator.

The D-Tap port features a display for input voltage and an indicator for reverse plugging warning and input voltage range, while the dummy battery display shows NP-F and DC input voltage.

Constructed from fire-resistant PC, PU, and metal for optimal heat dissipation, this cable enhances efficiency and safety.

It incorporates multiple circuit protections—overheating, short-circuit, low-voltage, and overvoltage—to ensure safe charging and reliable performance during shooting.

Certifications: FCC, CE, PSE, RoHS

Techn. info:

• D-Tap Rated Input: 20V / 4A
• NP-F / DC Rated Output Voltage: 8.2V
• NP-F / DC Output Current (Max): 4A
• USB-C Output:
• 33W (Max）
• PD: 5V / 3A，9V / 3A，12V / 2.5A
• PPS: 3.3-11V / 3A (30W Max)
• Indicator / Display Functions:
• Green Light: Forward plugging
• Red Light: Reverse plugging, automatically cut off the power
• Flashing Red Light: Input voltage 10V-12V
• Red Light: Input voltage 12V-13V
• Green Light: Input voltage ＞13V
• D-Tap Input Voltage Display
• NP-F / DC Output Voltage Display
• Overheating Warning (07P)
• Short-Circuit Warning
• Low-Voltage Warning (OC)
• Overvoltage Warning (OC)
• Circuit Protections:
• NP-F Port Overcurrent Protection: Activates at 5.5A and resets when current drops to 5A or below
• Short-Circuit Protection: Engages during a short circuit and resumes once resolved

Compatibility:

• Monitors, video transmitters, follow focus motors, V-mount batteries, NP-F batteries, direct-charge camera batteries, smartphones, tablets, laptops, etc.

Packaging includes:

• D-Tap to Dual-Sided NP-F Dummy Battery Power Cable
• User Manual
