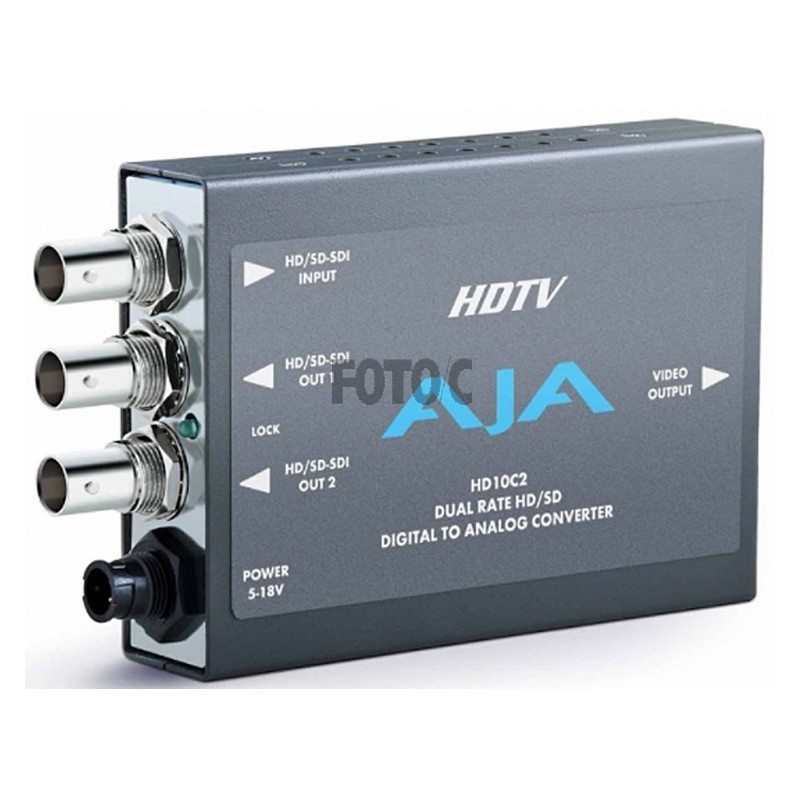

AJA HD10C2 HD-SDI/SDI SDI to composite

Overblik:

High-Quality 10-bit Dual Rate HD/SD D/A Conversion

Full Bandwidth HD Analog RGB or YPbPr Output (HD input)

Component/Composite SD Output (SD input)

2 Equalized Loop-Thru HD-SDI/SDI Outputs

5 wire RGBHV VGA style HD output

HD Sync Selectable Between Bi-level and Tri-Level

4:3 Safe Area Graticule (HD)

5-18VDC Power

External Dip Switch Configuration

Specifikationer:

Formats: HD: 1080i @ 50/59.94/60 Hz

1035i @ 50/50.94/60 Hz

1080psf @ 23.98/24/25/29.97/30 (displayed as Interlaced)

720p @ 59.94/60 Hz

SD: 525 59.94Hz, 625 50Hz

Automatic Configuration

Inputs: HD-SDI or SDI SMPTE 259/292/296, 10-bit, BNC

Input Equalization: 125 Meter 1694 Cable

Outputs: HD: YPbPr, RGB (SMPTE-274)

SD: YPbPr (SMPTE/N10, Beta?? RGB, Y/C, NTSC/PAL)

13W3 wideband analog output connector (cable supplied)

HD-SDI/SDI equalized loop-thru, 2 x BNC

Sync: HD: Tri-level or Bi-level, H/V Drive

SD: normal SD sync

Frequency Response: HD: Y +0, -.5db to 30 MHz, C +/- .25db to 13 MHz

SD: Y +/- .25db to 5.5 MHz, C +/- .25db to 2.5 MHz

User ControlsExternal Dipswitch

YPbPr/RGB

Component/Composite (SD)

SD Pedestal

SD Blanking

HD 4:3 Graticule

SD NTSC/NTSC-J

Sync on Video on/off

Power: +5-18VDC Regulated, 4 Watts, Power Supply Required (sold separately)

Size:147 x 79 x 25mm
