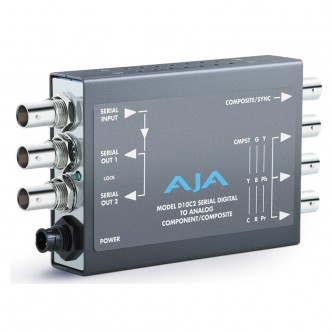

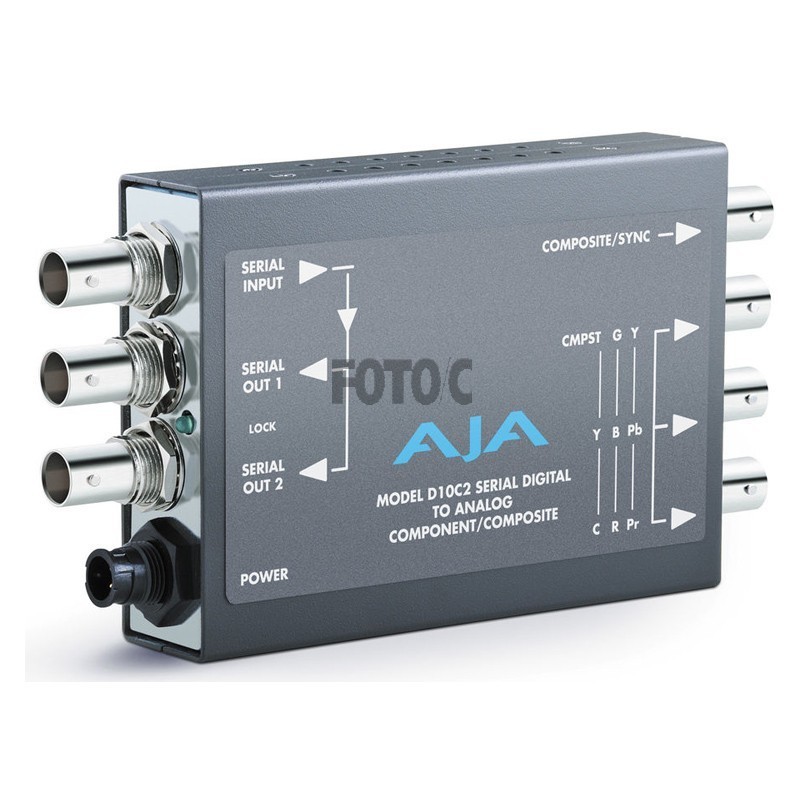

AJA D10C2 SDI to Analog Video Converter

AJA's SDI to Analog Video Converter provides excellent quality 10-bit conversion of SDI to analog component or composite video at a low cost.

In the component mode, the D10C2 outputs are user configurable to YPbPr (SMPTE, EBU-N10), Betacam, or RGB. In the composite mode, the D10C2 provides 2 composite outputs and a YC (S-Video) output.

The D10C2 also provides two re-clocked, loop-thru SDI outputs and a composite sync output (component mode). All functions are user configurable via DIP switches.

Specifikationer:

Inputs: SDI (SMPTE 259M), 1x BNC

Outputs: For component input only (270Mb):

YPbPr - SMPTE, EBU-N10, Betacam

RGB, 3 x BNC

Sync, 1 x BNC

For composite input only (142/177Mb):

NTSC/PAL 1 x BNC

YC (S-Video), 2x BNC

Re-clocked loop-thru SDI, 2 x BNC

D/A Converters: 10-bit, 4 x oversampling

Frequency Response: Y +/- .15dB to 5.5Mhz C +/- .15dB to 2.5 Mhz (component)

C +/- .15dB to 1.3Mhz (composite)

Less than .5% K factor (2T)

Power: 5VDC regulated, 4 watts, power supply

Dimensions: 147 x 79 x 25 mm
