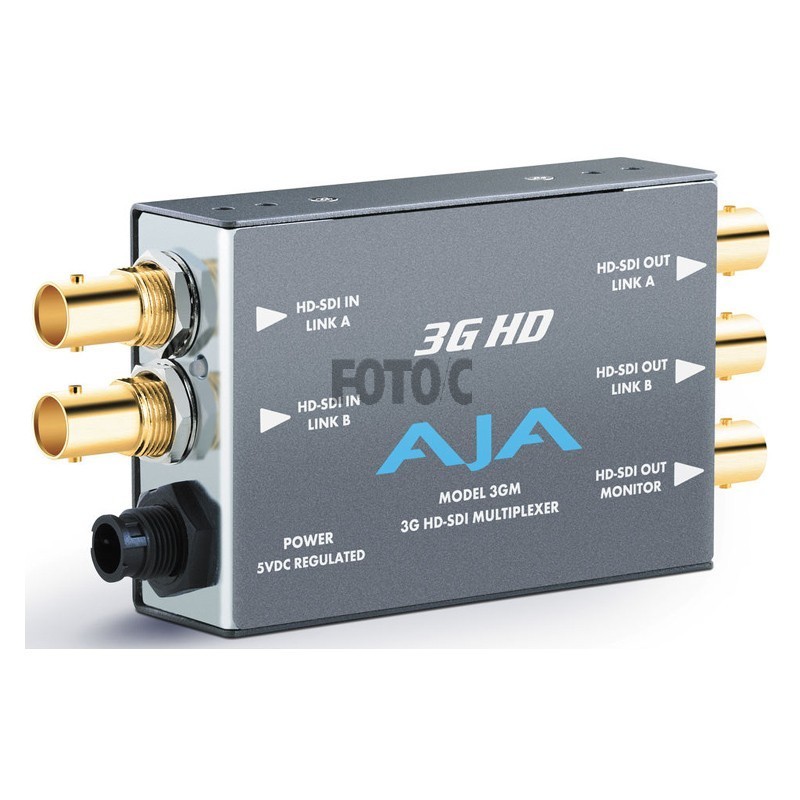

AJA 3gm 3g/1.5g HD-sdi multiplexer

AJA's 3GM HD Mini-Converter is a versatile and economical tool for interconnecting dual-link 1.5G SMPTE372M and 3G SMPTE425M. 3GM is bi-directional - allowing dual 1.5G to 3G or 3G to dual 1.5G conversion.

Additionally, 3GM's 3G HD-SDI output is configurable for SMPTE425M type A or B. The 3GM can even convert 3G from/to type A or B. 3GM also provides a monitor output which is a single link SMPTE292M 1.5G HD-SDI.

The 3GM is also compatible with SMPTE259M 270Mb SDI.

Specifikationer:

Formats: 3Gb, 1.5Gb, 270Mb Auto Select

Video Inputs: 2 HD-SDI, SDI (SMPTE 259/292/296/424), 2x BNC

Video Outputs: 3G HD-SDI, HD-SDI, SDI, 3x BNC

Cable Equalization: 270mb, 350m

1.5Gb, 200m

3Gb, 120m

Cable Equalization: (1694 coax)

Input/Output Return Loss: >15db, 270Mb - 3Gb

Power: +5VDC Regulated, 6 Watts, Power Supply Required (sold separately)

Size: 117 x 61 x 25mm
